Linux Sudoers File Configuration: A Practical Guide with Examples

The /etc/sudoers file is the gatekeeper of privileged access on a Linux system. This guide breaks down its syntax with clear examples and diagrams to help you configure it safely and effectively.

First Rule of Sudoers: Always Use visudo

Never edit /etc/sudoers directly with a regular text editor. Always use:

/usr/local/etc/sudoers

sudo visudo

The visudo command locks the file, prevents simultaneous edits, and performs a syntax check before saving, saving you from a catastrophic mistake.

Sudoers Syntax: The Basics

A sudoers rule follows this general structure:

USER HOST = (RUNAS_USER) [NOPASSWD:] COMMANDS

• USER: Who the rule applies to (e.g., john, %admin).
• HOST: Which host(s) the rule applies to (useful in shared sudoers files).
• RUNAS_USER: Which user(s) the command can be run as (e.g., root, www-data).
• NOPASSWD: Optional. Allows the command to be run without a password.
• COMMANDS: The specific commands allowed.

Example 1: Defining Aliases for Clarity

The real power of sudoers is using aliases to group users, commands, and hosts. This makes rules reusable and easier to read.

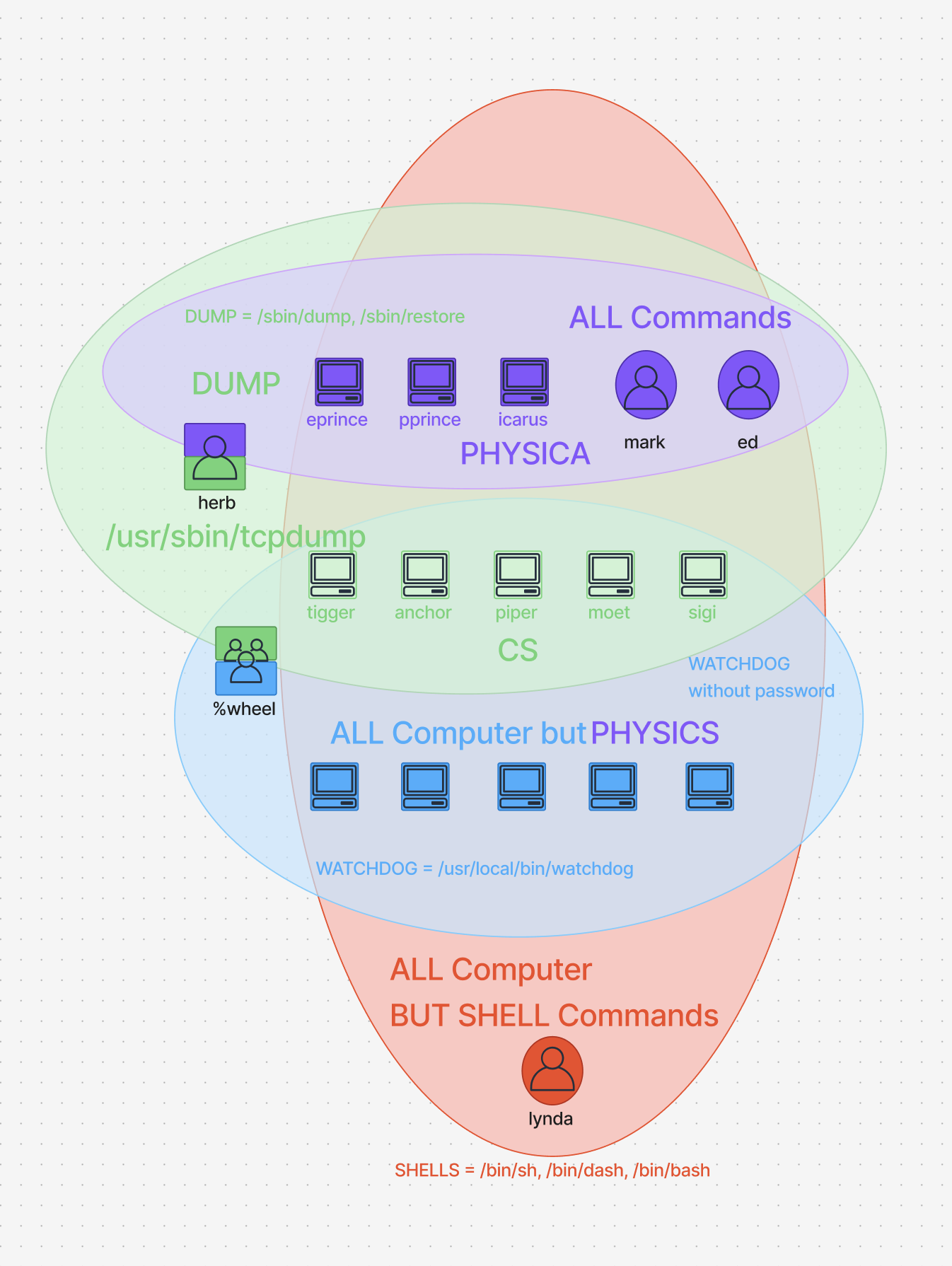

Here is the diagram:

Lets test the following line

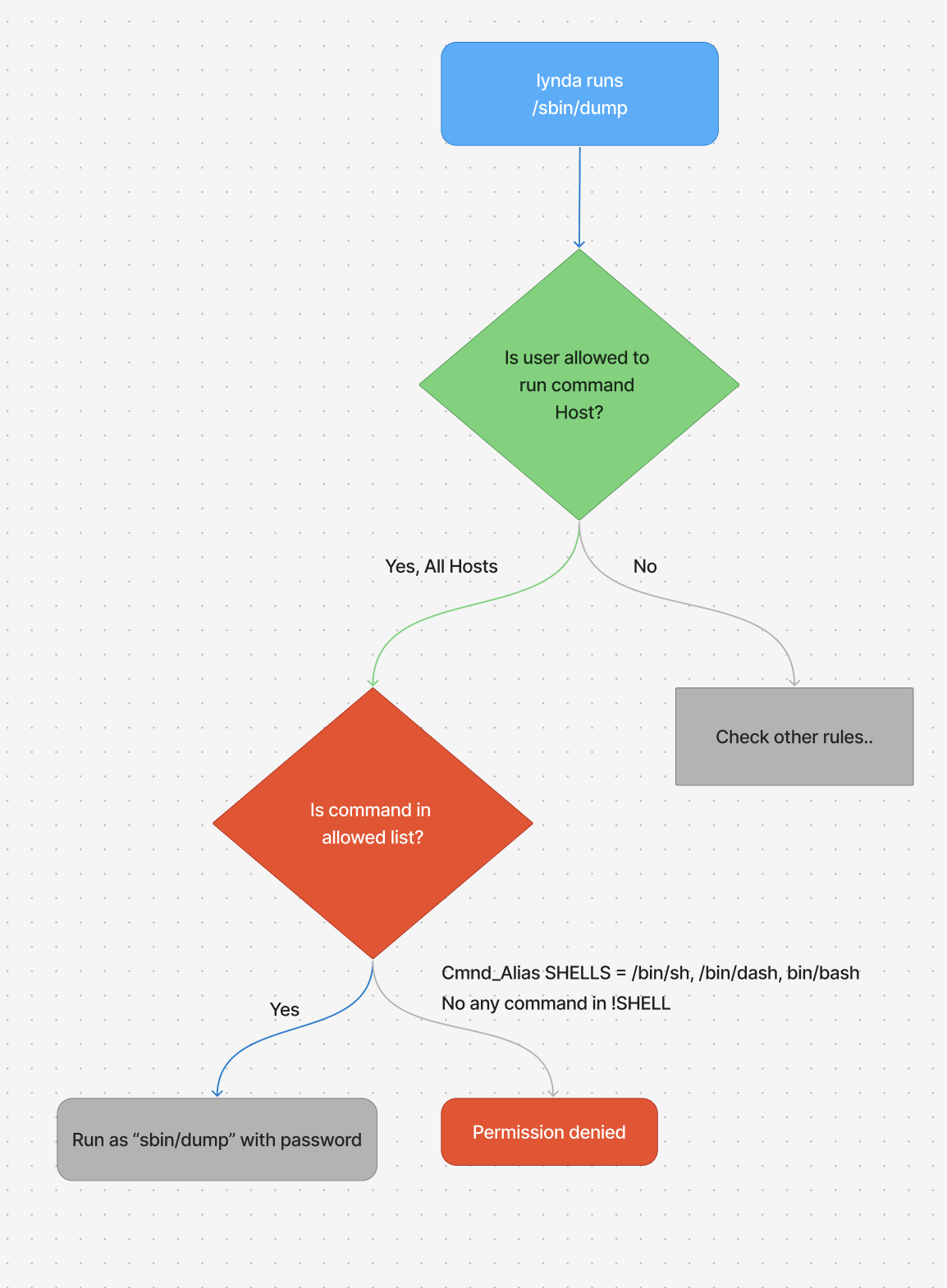

This mean user lynda can run ALL commands except !SHELLS on ALL Hosts. for this example lets imagine lynda runs /sbin/dump on tigger Host

in the next example lynda runs /bin/sh on tigger Host, which is a SHELLS command and lynda is not allowed to run it.

Lets explain another line

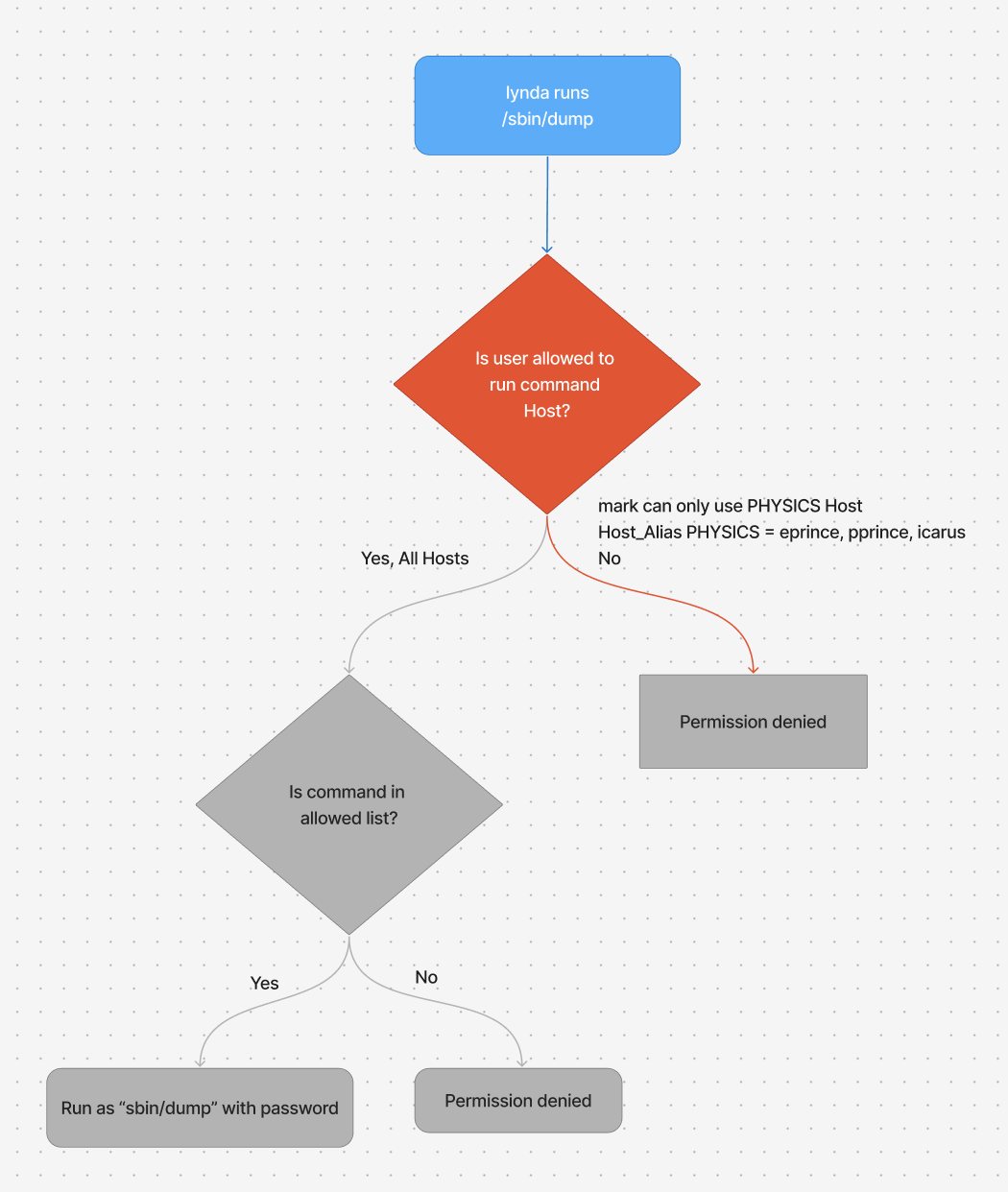

Here mark is trying to run /sbin/dump on trigger host, which is part of CS hosts and mark is not allowed to run commands on these hosts.

sudo vs advanced access control

User_Alias	ADMINS = alice, bob, charles
ADMINS			ALL = (ALL) ALL

Evn variable EDITOR is set to hacker's malicious program, if you run sudo visudo you are runing the hacker's program.

So, pass only a minimal, sanitized environment to the commands that it runs.

Defaults	env_keep += "SSH_AUTH_SOCK"
Defaults 	env_keep += "DESPLAY XAUTHORIZATION XAUTHORITY"

sudo without password

Use case are remote configuration such as Ansible or when running commands out of cron

• sudoers file

ansible 	ALL= (ALL) NOPASSWD: ALL

Example 2: Practical Permission Rules

Now, let's use our aliases to create clear and powerful rules.

• ADMINS can run the logrotate without supplying a password.
• MYSQL_ADMINS can run any command as mysql without a password
• wheel group can run any command under any UID

This diagram illustrates the logical flow of how two of these key rules are evaluated when a user tries to run a command with sudo:

sudo without a control terminal

sudo can check for and reject if the requiretty option is turned on in the sudoers file

Defaults 		requiretty		# NOT secure # Enforces TTY
Defaults 		!requiretty		# Secure			# Disable TTY requirement (Allow non-interactive use)

• if enabled
  • Commands allowed to run form terminal session (interactive shell)
  • Running sudo from a script (without TTY) will fail ❌.
  • echo "passwd" | sudo -S command (pipe into sudo) will fall ❌
• if disabled
  • (Default mostly) sudo will allow non-interactive execution (script , cron) ✅

Conclusion: A Template for Success

When configuring sudo, always follow the Principle of Least Privilege: grant only the access necessary to perform a specific job.
